BlueLine Coilover Kit suitable for Audi A5 8T incl. Quattro models 1.8 TFSI, 2.0 TDI, 2.0 TFSI, 2.7 TDI, 3.0 TDI, 3.2 FSI, year 2007-2016

BlueLine Coilover Kit suitable for Audi A5 8T incl. Quattro models 1.8 TFSI, 2.0 TDI, 2.0 TFSI, 2.7 TDI, 3.0 TDI, 3.2 FSI, year 2007-2016

Product.Nr.: 741122

Manufacturer: JOM Car Parts & Car Hifi GmbH

🔴 Currently not available
weight 24,4 kg

product description

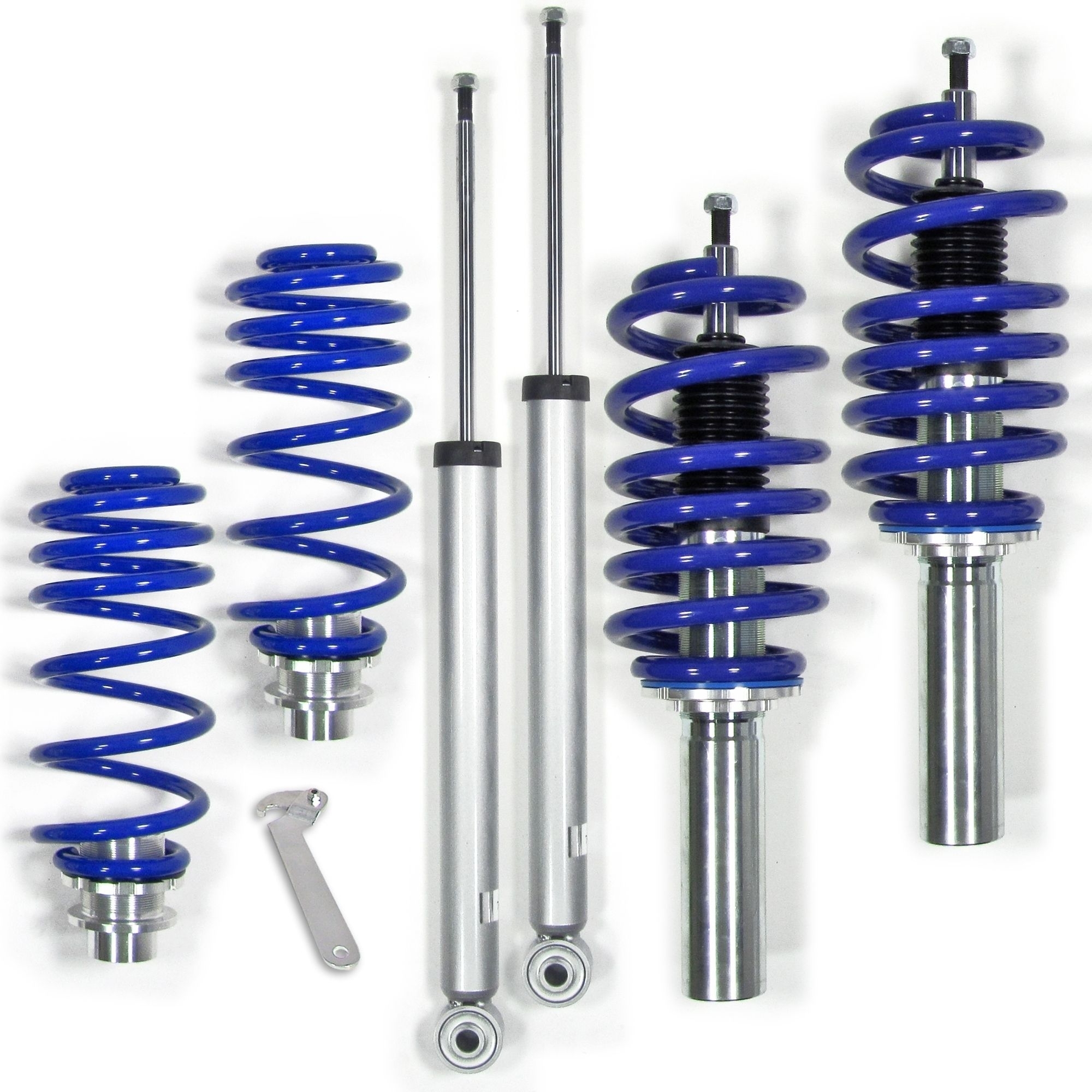

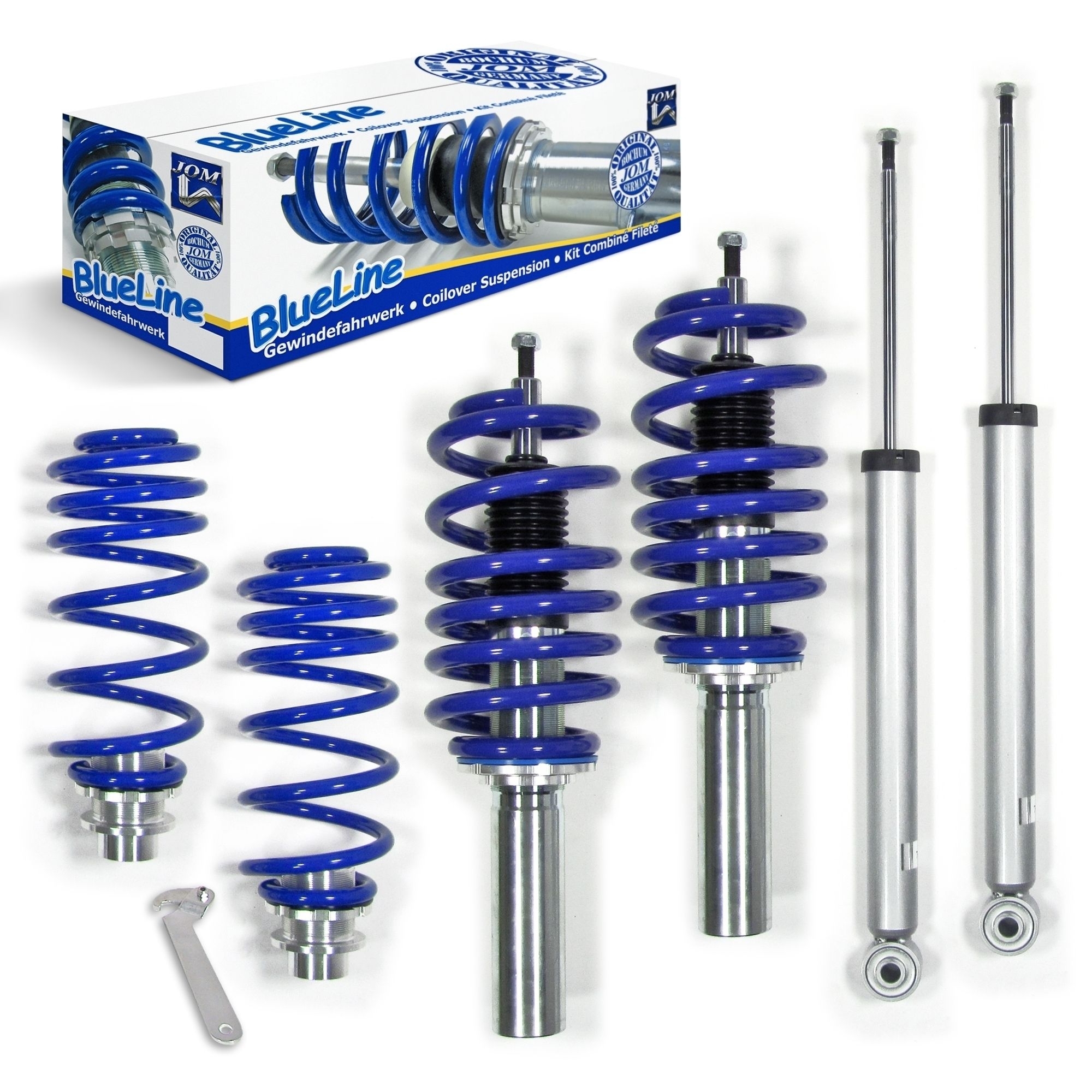

The BlueLine coilover suspension kits are highgrade car-specific suspension components with a lowering on frontaxle between 30 - 50 mm and on the rearaxle between 20 - 50 mm. The range of adjustment gives an individual body lowering. The kits have a huge transverse force absorption. The initial spring tension survives in complete range of adjustment. Adjustment after installation. Car-specific versions: front thread / rear thread.

adjustable range FA 30-50 mm / RA 20-50 mm,
max. axle load FA 1215 Kg / RA 1240 Kg
§19.3 certificate
EPC powder coated cold winded spring
damper galvanised

Downloads

file size

Gutachten (0.26 MB)

0.26 MB

Anleitung (0.24 MB)

0.24 MB

Compatibility

Manufacturer	Vehicle	Construction year	HSN/TSN
Audi	A5 1.8 TFSI 1798 ccm, 118 KW, 160 PSHSN / TSN: 0588\|AKR Plattform : 8T3	05.2009 - 09.2011	0588\|AKR
Audi	A5 1.8 TFSI 1798 ccm, 125 KW, 170 PSHSN / TSN: 0588\|AGB Plattform : 8T3	10.2007 - 01.2017	0588\|AGB
Audi	A5 2.0 TDI 1968 ccm, 120 KW, 163 PSHSN / TSN: 0588\|AHF Plattform : 8T3	08.2008 - 01.2017	0588\|AHF
Audi	A5 2.0 TDI 1968 ccm, 125 KW, 170 PSHSN / TSN: 0588\|AGK Plattform : 8T3	08.2008 - 03.2012	0588\|AGK
Audi	A5 2.0 TDI 1968 ccm, 130 KW, 177 PSHSN / TSN: 0588\|ARZ Plattform : 8T3	10.2011 - 01.2017	0588\|ARZ
Audi	A5 2.0 TDI 1968 ccm, 140 KW, 190 PSHSN / TSN: 0588\|AYP Plattform : 8T3	09.2013 - 01.2017	0588\|AYP
Audi	A5 2.0 TDI quattro 1968 ccm, 125 KW, 170 PSHSN / TSN: 0588\|AIM Plattform : 8T3	08.2008 - 03.2012	0588\|AIM
Audi	A5 2.0 TDI quattro 1968 ccm, 130 KW, 177 PSHSN / TSN: 0588\|ASZ Plattform : 8T3	12.2011 - 01.2017	0588\|ASZ
Audi	A5 2.0 TDI quattro 1968 ccm, 140 KW, 190 PSHSN / TSN: 0588\|AYQ Plattform : 8T3	09.2013 - 01.2017	0588\|AYQ
Audi	A5 2.0 TFSI 1984 ccm, 132 KW, 180 PSHSN / TSN: 0588\|AIQ Plattform : 8T3	11.2008 - 03.2012	0588\|AIQ
Audi	A5 2.0 TFSI 1984 ccm, 155 KW, 211 PSHSN / TSN: 0588\|AGC Plattform : 8T3	06.2008 - 11.2013	0588\|AGC
Audi	A5 2.0 TFSI quattro 1984 ccm, 155 KW, 211 PSHSN / TSN: 0588\|AHH Plattform : 8T3	06.2008 - 01.2017	0588\|AHH
Audi	A5 2.0 TFSI quattro 1984 ccm, 162 KW, 220 PSPlattform : 8T3	03.2012 - 01.2017
Audi	A5 2.7 TDI 2698 ccm, 120 KW, 163 PSHSN / TSN: 0588\|AGN<>0588\|ALL Plattform : 8T3	09.2007 - 03.2012	0588\|AGN<>0588\|ALL
Audi	A5 2.7 TDI 2698 ccm, 140 KW, 190 PSHSN / TSN: 0588\|AGF Plattform : 8T3	06.2007 - 03.2012	0588\|AGF
Audi	A5 3.0 TDI 2967 ccm, 150 KW, 204 PSHSN / TSN: 0588\|ASA Plattform : 8T3	10.2011 - 01.2017	0588\|ASA
Audi	A5 3.0 TDI quattro 2967 ccm, 155 KW, 211 PSHSN / TSN: 0588\|AHT Plattform : 8T3	03.2008 - 05.2010	0588\|AHT
Audi	A5 3.0 TDI quattro 2967 ccm, 176 KW, 240 PSHSN / TSN: 0588\|AGG Plattform : 8T3	06.2007 - 03.2012	0588\|AGG
Audi	A5 3.0 TDI quattro 2967 ccm, 180 KW, 245 PSHSN / TSN: 0588\|ASB Plattform : 8T3	10.2011 - 01.2017	0588\|ASB
Audi	A5 3.0 TFSI quattro 2995 ccm, 200 KW, 272 PSHSN / TSN: 0588\|ATF Plattform : 8T3	12.2011 - 01.2017	0588\|ATF
Audi	A5 3.2 FSI 3197 ccm, 195 KW, 265 PSHSN / TSN: 0588\|AGD Plattform : 8T3	06.2007 - 03.2012	0588\|AGD
Audi	A5 3.2 FSI quattro 3197 ccm, 195 KW, 265 PSHSN / TSN: 0588\|AGE Plattform : 8T3	06.2007 - 03.2012	0588\|AGE
